[Go] swag를 이용한 RESTful API 문서화

설명

• https://github.com/swaggo/swag
• Go 주석을 swagger 문서 2.0으로 변환
• 명령어
  • swag 설치
    • go install github.com/swaggo/swag/cmd/swag@latest
  • init
    • 구문 분석 및 doc 생성
    • 의존성이 없는 경우
      • ~/go/bin/swag init
    • 의존성이 있는 경우
      • 다른 패키지의 구조체를 요청이나 응답으로 사용하는 경우 등
      • ~/go/bin/swag init --parseDependency
  • fmt
    • swag 주석에 swag 포맷 적용
    • ~/go/bin/swag init
• Swagger UI
  • ip:port/swagger/index.html을 통해 접근 가능
  • api 확인 및 테스트 가능

예제

• 코드

   package main

   import (
   	"context"
   	"net/http"
   	"os"
   	"os/signal"
   	"sync"
   	"syscall"
   	"time"

   	"test/docs"

   	"github.com/gorilla/mux"
   	httpSwagger "github.com/swaggo/http-swagger"
   )

   var server *http.Server

   type TestPostRequest struct {
   	Field1 string `json:"field_1",omitempty example:"value"`
   }

   type ResponseSuccess struct {
   	Field1 string `json:"field_1"`
   }

   type ResponseFailure struct {
   	Cause string `json:"cause"`
   }

   func loggingMiddleware(next http.Handler) http.Handler {
   	return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
   		println(r.RequestURI, r.Method, "start")
   		defer println(r.RequestURI, r.Method, "end")

   		next.ServeHTTP(w, r)
   	})
   }

   // @Summary get test
   // @Description get test
   // @Accept json
   // @Produce json
   // @Param param_1 query string true "param_1 selection" Enums(1, 2, 3)
   // @Param param_2 query string true "param_2 selection" Enums(A, B, C, D) default(A)
   // @Param param_3 query string true "param_3" default(AAA)
   // @Param id path string true "id" default(id_1)
   // @Success 200 {object} ResponseSuccess
   // @Failure default {object} ResponseFailure
   // @Router /v1/test/{id} [get]
   // @tags test
   func testGet(w http.ResponseWriter, r *http.Request) {
   	w.WriteHeader(http.StatusOK)
   	w.Write([]byte(`{"field_1" : "get ok"}`))
   }

   // @Summary post test
   // @Description post test
   // @Accept json
   // @Produce json
   // @Param id path string true "id" default(aaa)
   // @Param request body TestPostRequest true "country selection"
   // @Success 200 {object} ResponseSuccess
   // @Failure default {object} ResponseFailure
   // @Router /v1/test [post]
   // @tags test
   func testPost(w http.ResponseWriter, r *http.Request) {
   	w.WriteHeader(http.StatusOK)
   	w.Write([]byte(`{"cause" : "post fail"}`))
   }

   func run(wg *sync.WaitGroup, done chan int) {
   	defer wg.Done()

   	go finalize(done)

   	docs.SwaggerInfo.Version = "1.0"
   	docs.SwaggerInfo.Host = "127.0.0.1:10000"
   	docs.SwaggerInfo.BasePath = ""
   	docs.SwaggerInfo.Title = "test"
   	docs.SwaggerInfo.Description = "test"

   	router := mux.NewRouter()

   	router.Use(loggingMiddleware)

   	router.PathPrefix("/swagger/").Handler(httpSwagger.WrapHandler)
   	router.HandleFunc("/v1/test/{id:[a-z,A-Z][a-z,A-Z,0-9,--,_,.]+}", testGet).Methods("GET")
   	router.HandleFunc("/v1/test", testPost).Methods("POST")

   	server = &http.Server{
   		Addr:    ":10000",
   		Handler: router}

   	server.ListenAndServe()
   }

   func finalize(done chan int) {
   	for len(done) == 1 {
   		time.Sleep(1 * time.Second)
   	}

   	if server != nil {
   		ctx, cancel := context.WithTimeout(context.Background(), 5*time.Second)
   		cancel()
   		server.Shutdown(ctx)
   	}
   }

   func main() {
   	var wg sync.WaitGroup

   	done := make(chan int, 1)
   	done <- 1

   	signals := make(chan os.Signal, 1)
   	signal.Notify(signals, syscall.SIGINT, syscall.SIGTERM)

   	wg.Add(1)
   	go run(&wg, done)

   	<-signals

   	<-done

   	wg.Wait()
   }

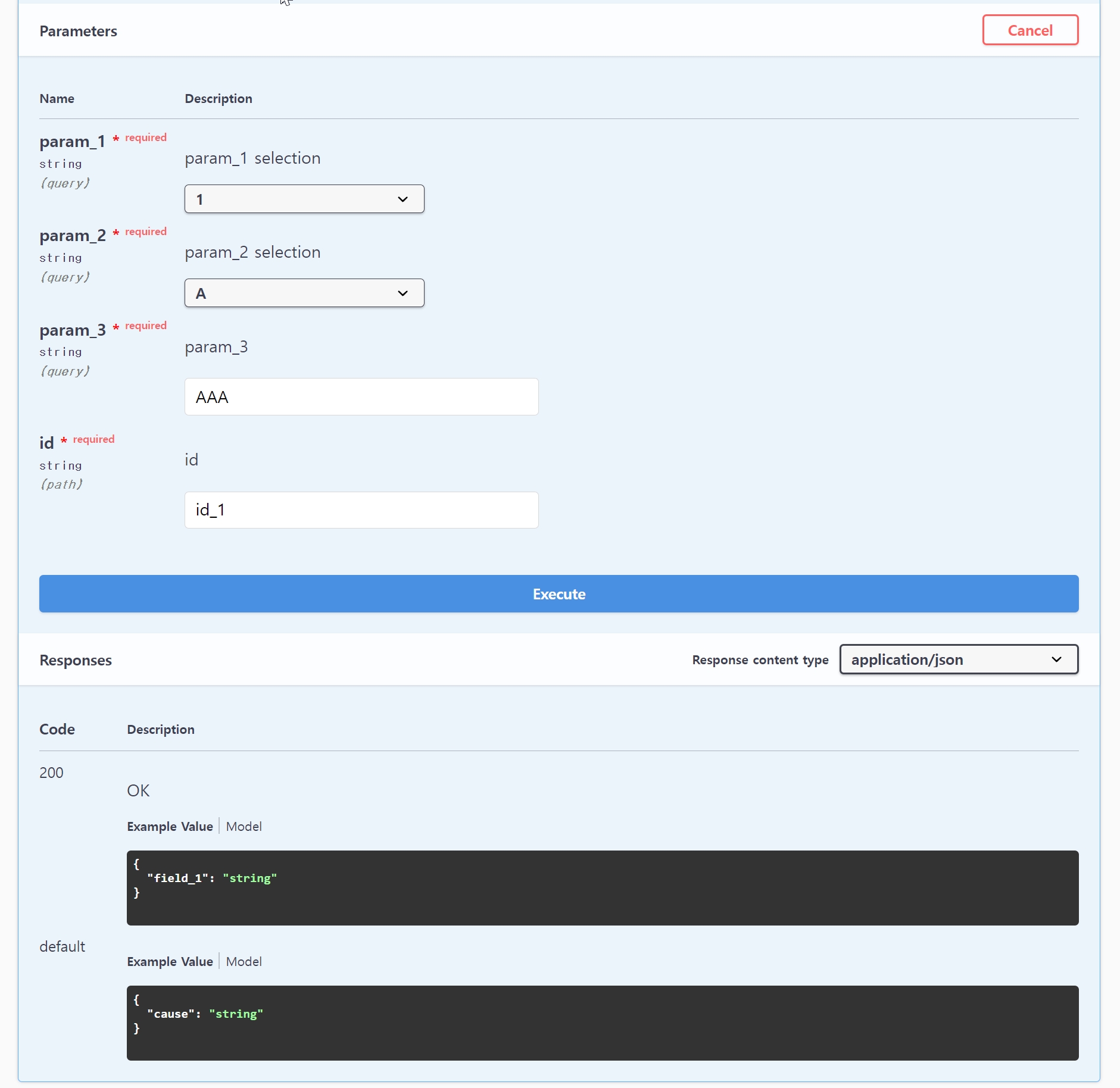

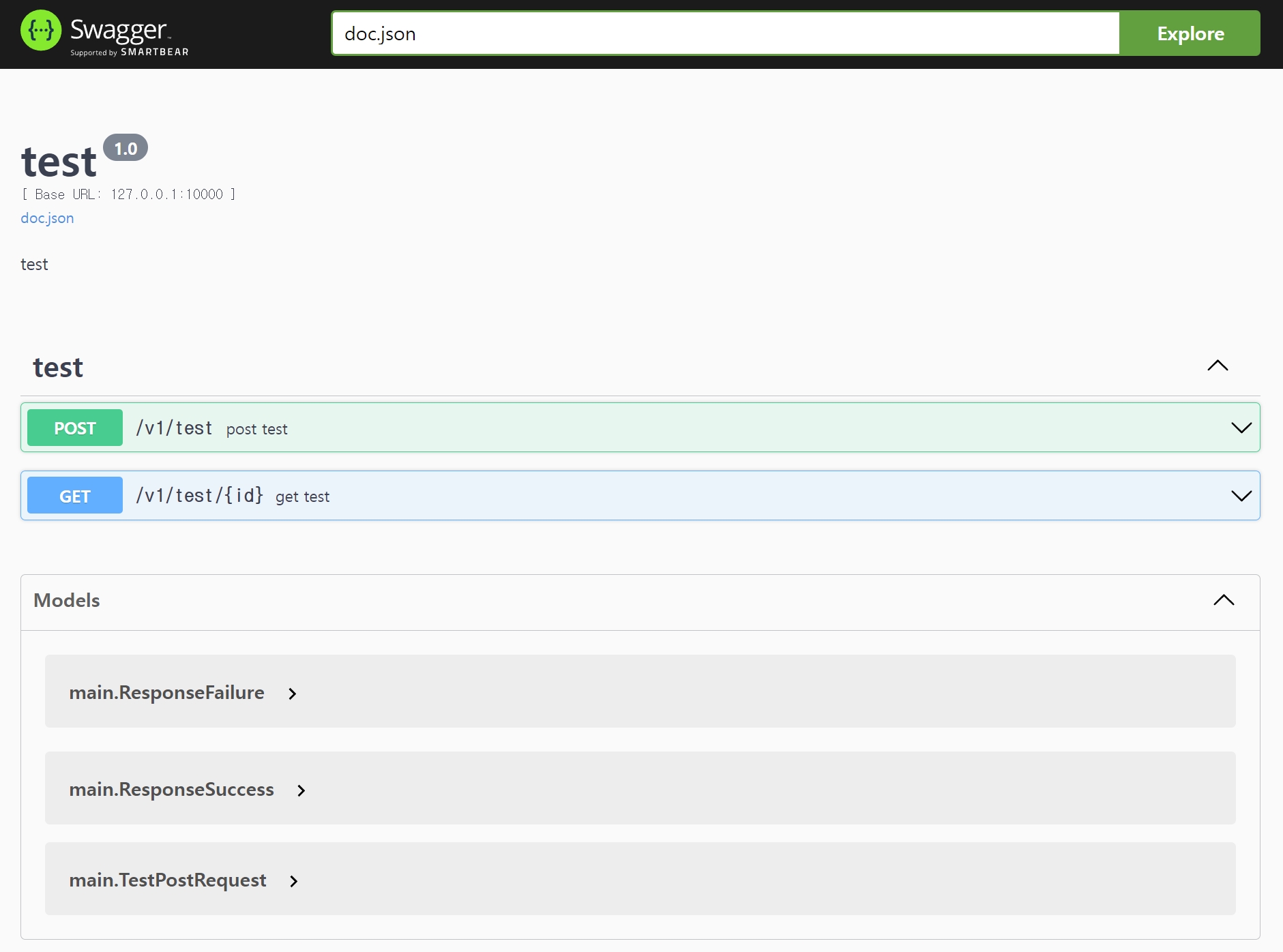

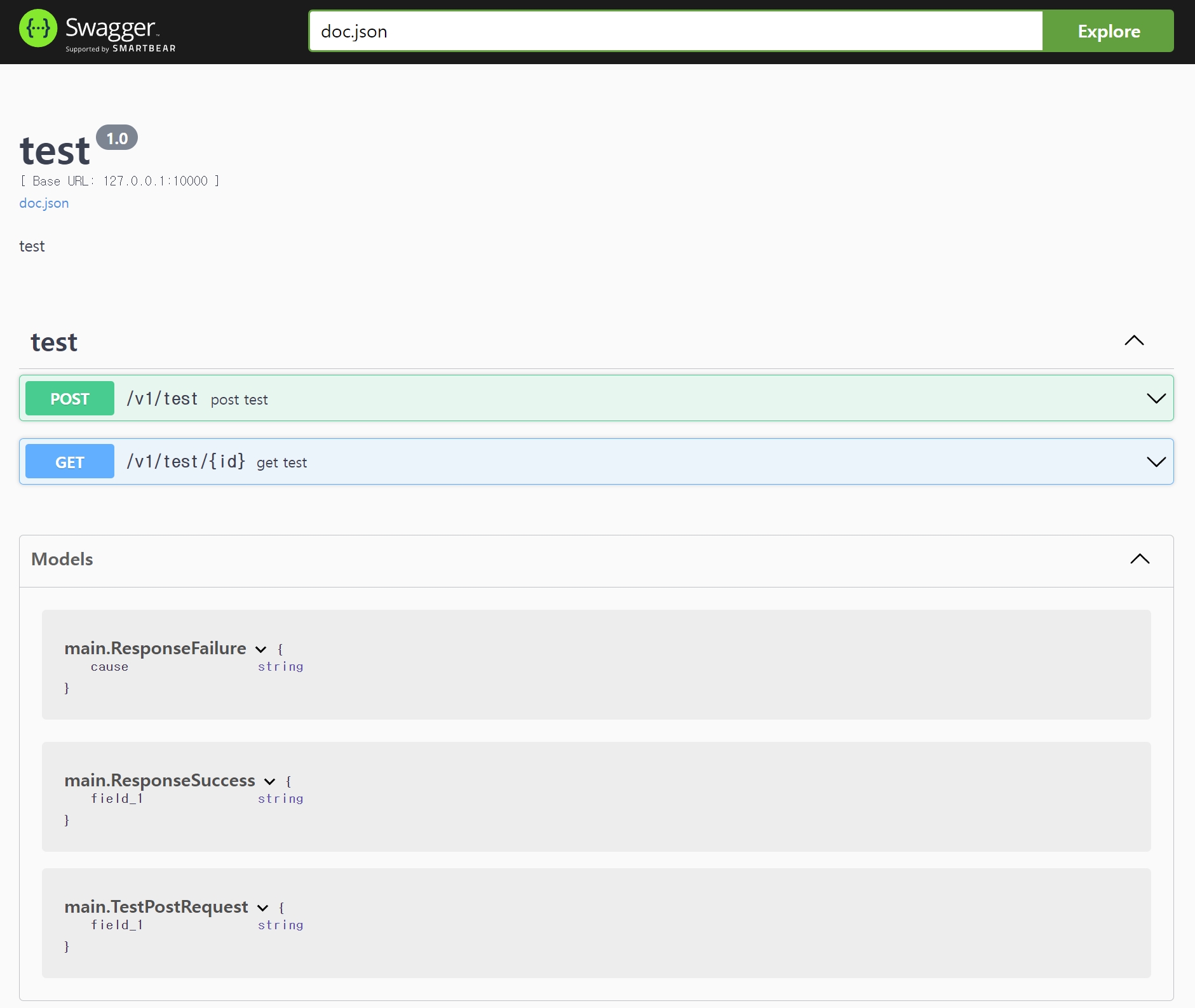

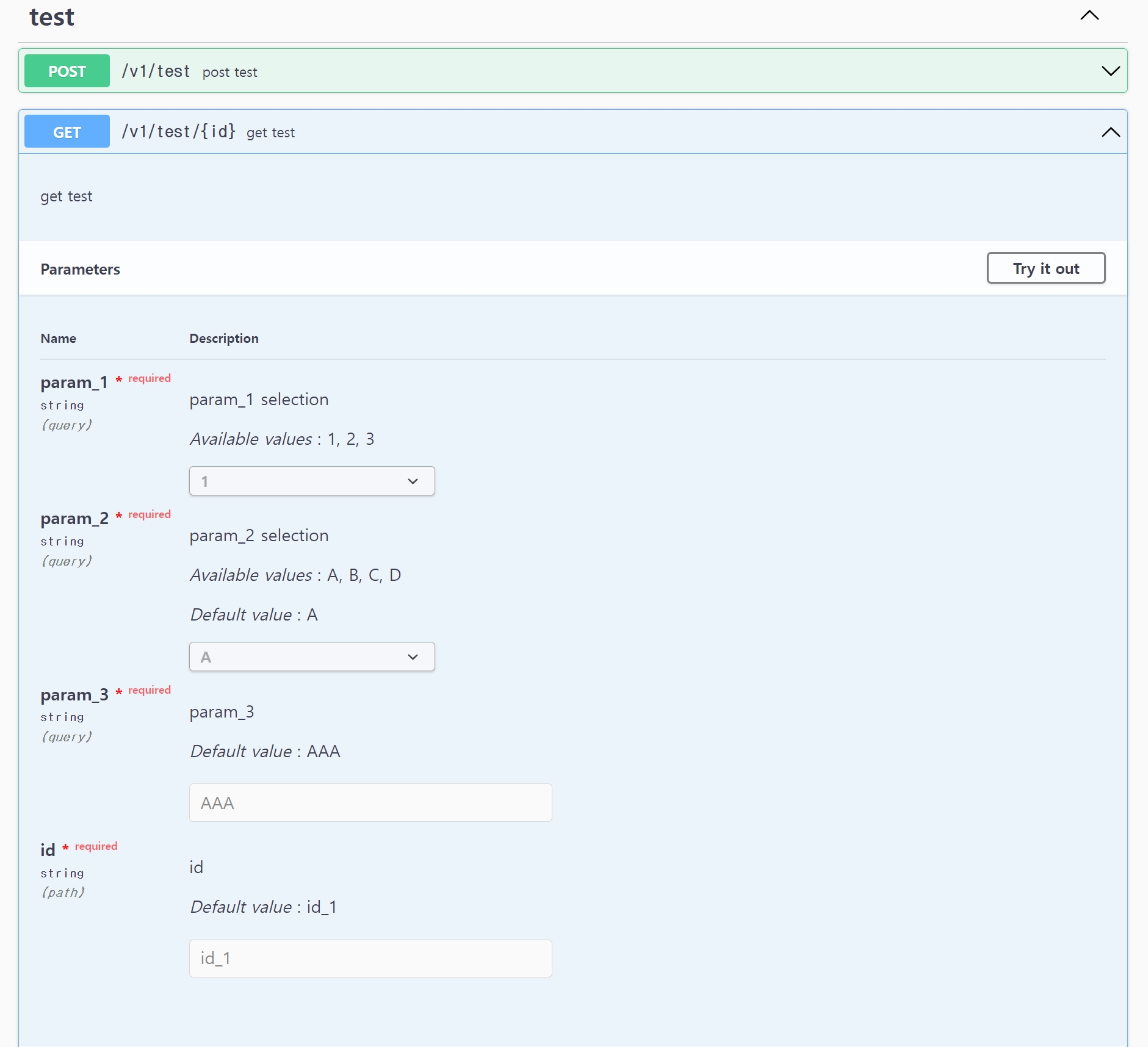

• 실행 결과
  •
  •
  •
  •
